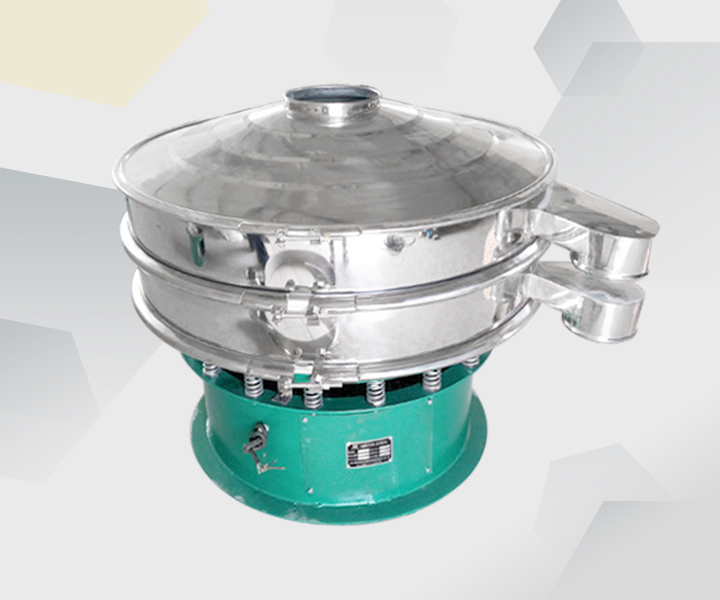

Oscillating Screen

Oscillating screen driven by three-dimensional movement and screening smooth with low noise.

Quality Details:

5+ diameters for you to select

10 tons handing capacity per hour

Major Function:

Elimination of impurities & Classification

Detailed understanding

Oscillatinf screen can screen many kinds of refined materials. It also uses three-dimensional centrifugal movement mode different from different vibrators to make the materials on the net evenly screened, which solves the problem of blockage of quota in other machines. According to the layout of the factory and the technological process, the discharge outlet with too large size and the discharge outlet with too small size/suitable size can be adjusted. If necessary, additional screen parts can be installed and fine wire mesh can be used to remove dust and fine materials.

Widely used in Spices, food, beverage, chemical, dairy, pigment and other industries.

Promotion Traits

Fits into smaller spaces - These vibrating screens can fit easily into existing installations and areas of limited headroom

Auto-discharge - to speed up the screening process, you just need to be ready to receive the material after screening.

Good sealing - no flying powder,no liquid leakage

No dead angle - easy to installation and unload, easy to clean and disinfect

Various Optional Specification:

Diameter - from Φ600 to Φ2000

Sieve aperture - from 2 mesh to 500 mesh

Mesh - PP net/Nylon/Dragon

Material - SS 304/Carbon Steel

Enquiry Online

Specification

If you are interested in customized services, PLEASE contact us!

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30
